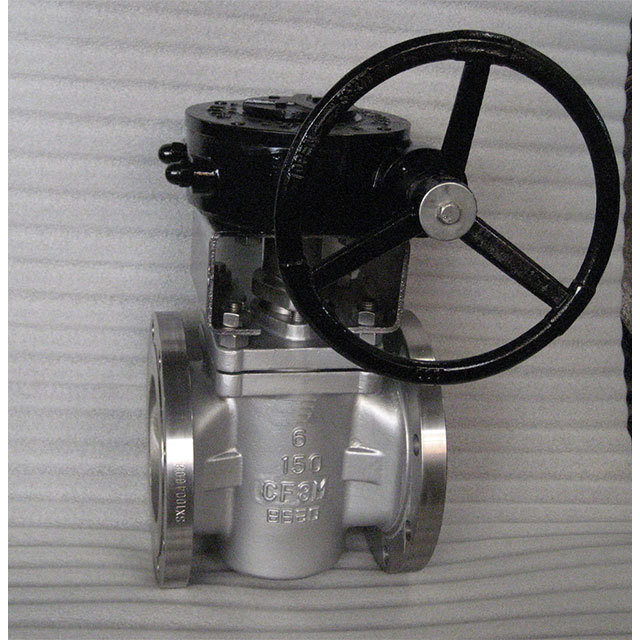

Cast Steel PTFE Sleeve Plug Valve Gear Operated

Cast Steel PTFE Sleeve Plug Valve Gear Operated

The application of these valves shall be limited by the temperature and chemical compatibility of the polymeric body liner or a sleeve used

Online Inquiry

Cast Steel PTFE Sleeve Plug Valve Gear Operated

The application of these valves shall be limited by the temperature and chemical compatibility of the polymeric body liner or a sleeve used


Size and Range:

Size: 1/2” ~ 24”

Pressure Rating: 150LB ~ 1500LB

Temperature: -60Deg. C ~ 150Deg. C


Applicable Standards:

Design & Manufacture: API 6D, API 599

Face to Face: ASME B16.10

Flange Dimensions: ASME B16.5

Pressure & Temperature: ASME B16.34

Test & Inspection: API 598

Fire Safe: API 607

Visual Inspection: MSS-SP-55

Marking: MSS-SP-25


Main Character:

Body Structure: Bolted Bonnet

Construction: Non Lubricated Plug Valve PTFE Sleeve

Bore: Full Bore / Reduced Bore

Connection: RF Flange, SW, FNPT, BW, etc.

Operation: Lever Operated, Gear Operated, Pneumatic Operated, Motor Operated, Gas over Oil Actuator etc.


Material Available:

Carbon steel

A216 Gr. WCB , WCC , WCA , etc

Low temperature steel

A352 Gr. LCB , LCC , LC1 , etc

Cr-Mo steel

A217 Gr. WC6 , WC9 , C5 , C12 , C12A , etc

Stainless Steel

A351 Gr. CF8 , CF8M , CF3 , CF3M , CF8C , etc

Alloy steel

CN7M alloy 20 , CN3M alloy 20 modified , CT15C , etc

Super duplex

A995 Gr. 4A , 5A , CE8MN , CD6MN , CD3MN , etc

Aluminum bronze

B148 C95500 , C95600 , C95800 , etc

Monel

M30C , M35-1 , CZ100 , etc

Inconel

CY40 inconel 600 , etc

Hastelloy

CW2m Hastelly C4 , N12MV Hastelloy B , CW12MW Hastelloy C276 , etc

Incoloy

CU5MCuC Incoloy 825 , CW6MC Incoloy 625 , etc


Applications:

TFC Valve Non Lubricated Plug Valve PTFE Sleeve is widely used in different applications, such like, Oil & Gas Field, Petrochemical Plant, Refineries, Power Generation Plant, Water & Waste Water Treatment, etc.
